Odyssey 70 (with 4 sided frame)
Odyssey 70 (with 4 sided frame) Image 3
Odyssey 70 (with 4 sided frame)

Odyssey 70 (with 4 sided frame)

Description

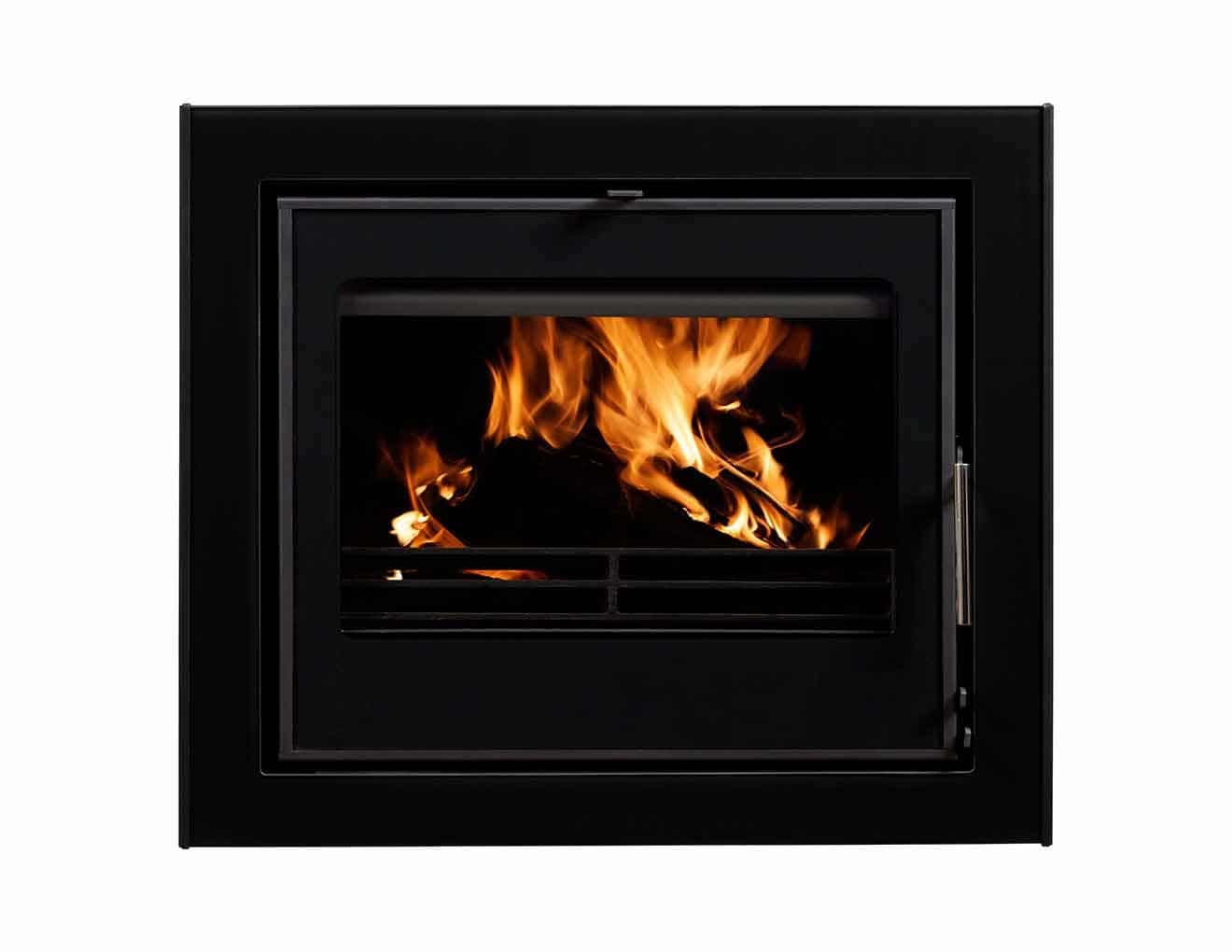

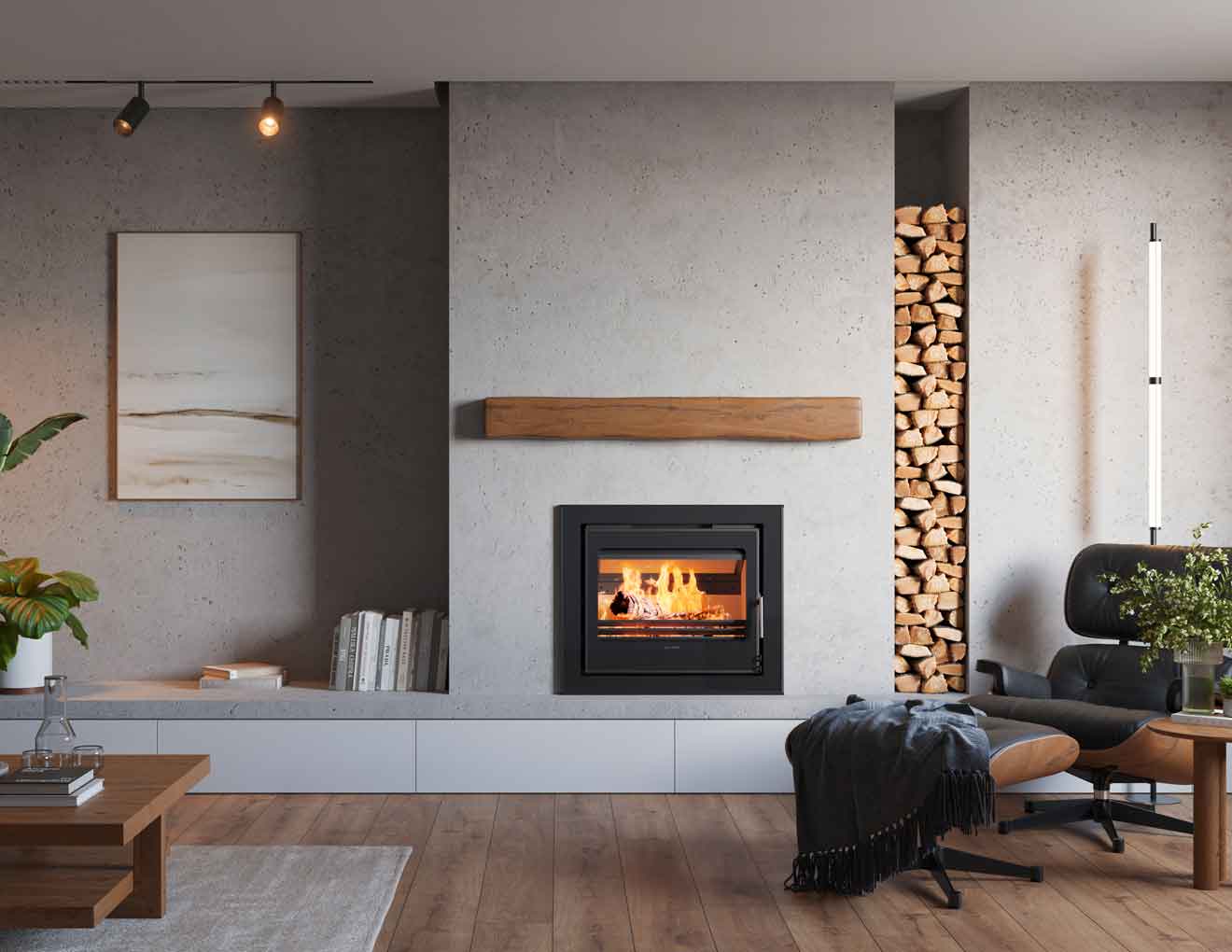

Odyssey 70 – with 4-Sided Frame

The Odyssey 70 with 4-sided frame is a convectional built-in fireplace offering a perfect blend of efficiency, ease of installation, and contemporary design. Like the rest of the Odyssey range, it operates without the need for an electrical fan or a secondary vent, allowing for silent operation that is unaffected by power outages.

Installation is made simple with the pre-installed secondary convectional box cover, allowing you to easily slide the fireplace into your appropriately sized 70 cm wide opening. Insulating the surrounding brickwork with ceramic wool or rockwool is recommended to reduce heat loss and maximize efficiency.

Featuring a thoughtfully engineered geometrical design, the top plate is angled at 20 degrees to naturally guide rising hot air towards the top outlet above the door, ensuring excellent heat circulation. The unit is elegantly finished with a full frameless black glass door and a stylish cover plate clad in matching black glass, adding sophistication to any room.

Ideal for retrofitting traditional Victorian fireplaces, the Odyssey 70 with 4-sided frame delivers modern closed combustion performance while respecting classic hearth dimensions. Manufactured in China, this model meets the latest Euro 2022 design regulations for low emissions and high efficiency. It is CE certified and comes with a 2-year limited warranty for added peace of mind.

Key Features:
Requires 70 cm wide opening – perfect for retrofitting

Convectional built-in design with no fan or secondary vent required

Silent operation, unaffected by power outages

Pre-installed secondary convectional box cover for easy installation

Top plate angled at 20° for natural hot air flow

Full frameless black glass door for a modern look

Glass-clad cover plate adds a refined finish

Euro 2022 compliant with minimal emissions and high efficiency

CE certified, backed by a 2-year limited warranty Manufactured in China
Technical Specifications
Weight 84 kg
Dimensions 73 × 47 × 72 cm
Material

Steel
Power to Space

65m² – 135m²
Power Output kW

11 kW (7 – 15 kW)
Fuel Diameter

150 mm
Fuel type

Wood

R29499,00
