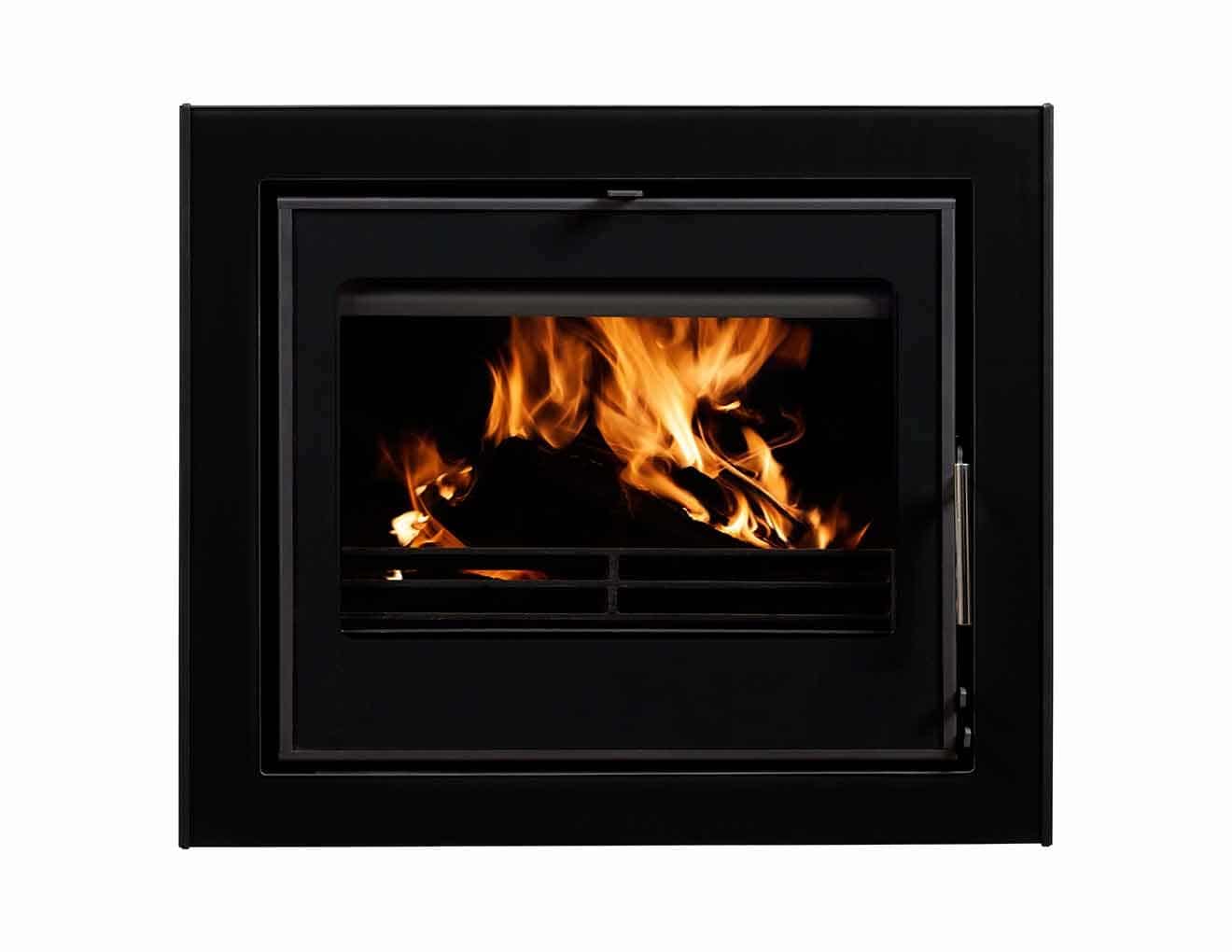

Odyssey 70 (with 3 sided frame)

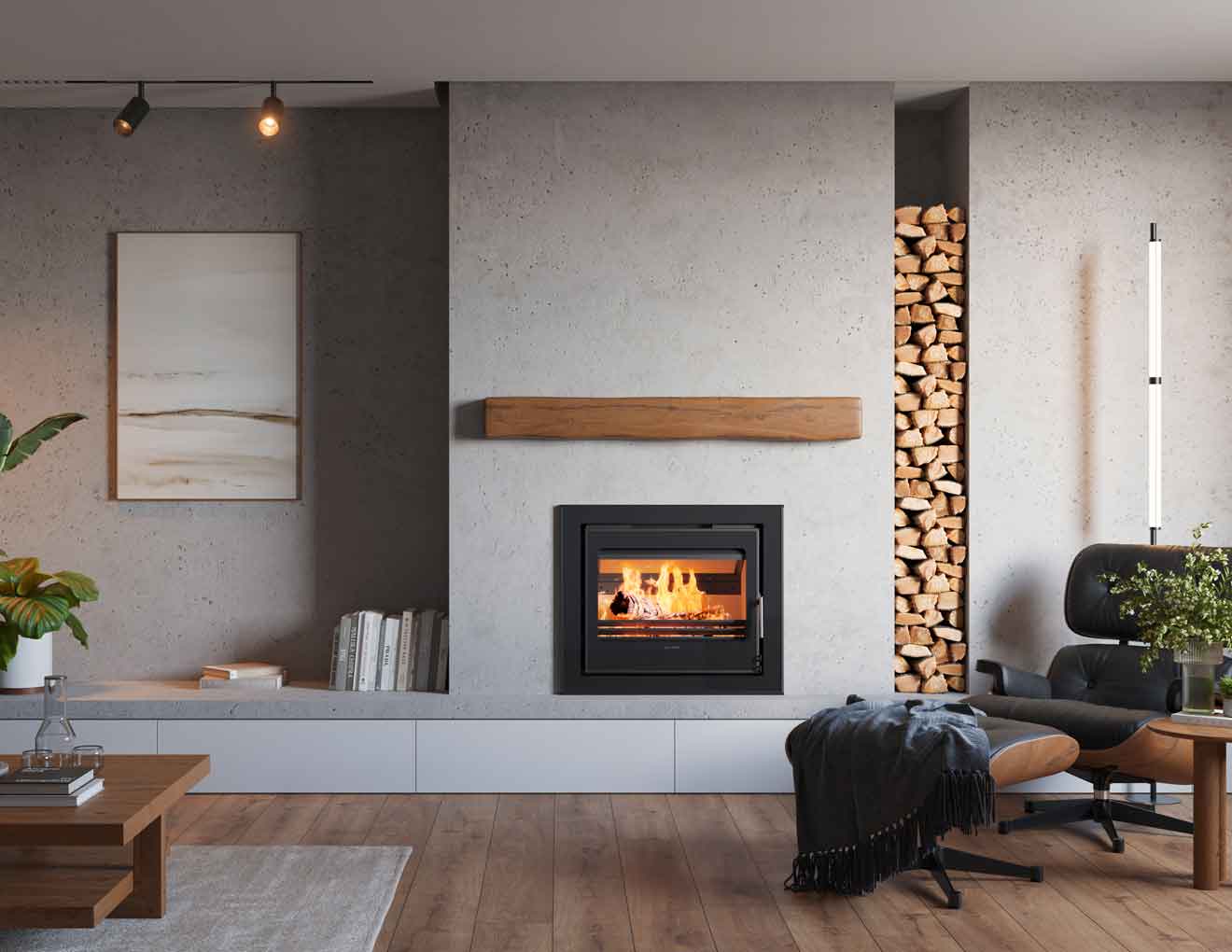

Odyssey 70 (with 3 sided frame) Lifestyle

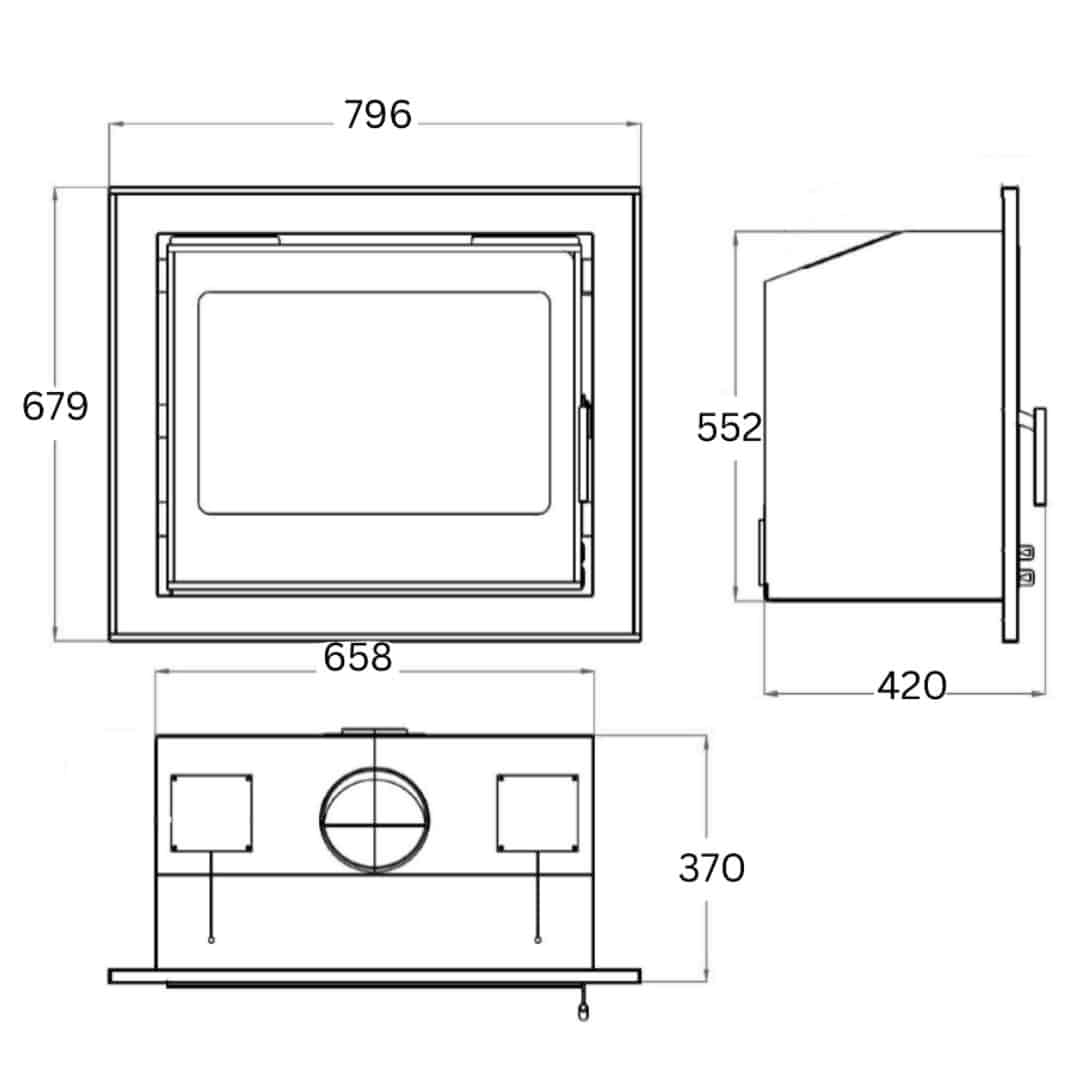

Odyssey 70 (with 3 sided frame) - Technical Drawing

Odyssey 70 (with 3 sided frame)

Description
Odyssey 70 – with 3-Sided Frame

The Odyssey 70 with 3-sided frame is a convectional built-in fireplace designed to combine simplicity, efficiency, and style. Unique in the Odyssey range, it does not require an electrical fan for forced air circulation, nor the installation of a secondary vent higher up, ensuring completely silent operation unaffected by power outages.

Installation is straightforward thanks to the pre-installed secondary convectional box cover—you simply slide it into your appropriately sized 70 cm wide opening. For optimal performance, insulating the surrounding brick structure with ceramic wool or rockwool is recommended to minimise heat loss.

The carefully engineered geometrical design includes a top plate angled at 20 degrees, guiding rising hot air naturally towards the top air outlet above the door for excellent heat distribution. The unit features a full frameless black glass door and a sophisticated cover plate clad in matching black glass, providing a sleek, modern aesthetic.

Ideal for retrofitting older Victorian fireplaces, the Odyssey 70 delivers modern closed combustion performance while respecting traditional hearth dimensions. Manufactured in China, it complies with the latest Euro 2022 design regulations for minimal emissions and high efficiency. The unit is CE certified and backed by a 2-year limited warranty for peace of mind.

Key Features:
Requires 70 cm wide opening – suitable for retrofitting

Convectional built-in design – no fan or secondary vent needed

Silent operation – unaffected by power outages

Pre-installed secondary convectional box cover – easy installation

Top plate angled at 20° – guides hot air naturally to outlet

Full frameless black glass door – sleek modern style

Glass-clad cover plate – elegant finishing touch

Minimal emissions, high efficiency – Euro 2022 compliant

CE certified with 2-year limited warranty

Manufactured in China
Technical Specifications
Weight 84 kg
Dimensions 73 × 47 × 72 cm
Material

Steel
Power to Space

65m² – 135m²
Power Output kW

11 kW (7 – 15 kW)
Fuel Diameter

150 mm
Fuel type

Wood

R29499,00
